# Cylinder 2d Postprocessing

## **Step 1: Open database**

* Start ***ABAQUS/VIEWER*** using prompt command: ***abaqus vi***(Or under ***Visualization*** Module of ABAQUS/CAE)
* ***File / Open***, and ***Open Database*** window pops up. \*\*\*\*
* Select ***\*.odb*** file and click ***OK*** to open

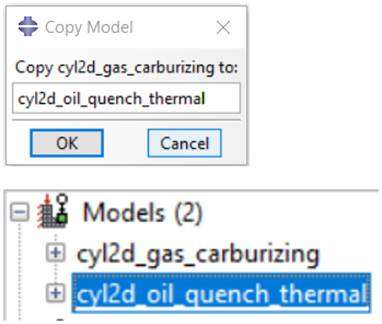

<figure><img src="https://3062023715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0UQEr9tolIKQwZXdPc9a%2Fuploads%2FEj10jLMw5wggusDnaoJN%2FPostProcessing_OpenDatabase.jpg?alt=media&amp;token=e79f8d52-21d9-4ea9-b1bf-19097c68a569" alt=""><figcaption></figcaption></figure>

## **Step 2: Create a Contour Plot**

* ***Result*** / ***Field Output***. ***Field Output*** window appears.

<figure><img src="https://3062023715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0UQEr9tolIKQwZXdPc9a%2Fuploads%2FEY39ibc90Mg3uxCv44sy%2Fimage004.jpg?alt=media&amp;token=257ddf8a-9aab-415c-a47d-2e5d78a5eb42" alt="" width="481"><figcaption></figcaption></figure>

* To create the temperature contour, select ***NT11***, click ***OK***. ***Step/Frame*** and ***Contour*** options can be selected.

<figure><img src="https://3062023715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0UQEr9tolIKQwZXdPc9a%2Fuploads%2F5n5OdhVgK1bbQ4Ci1Nct%2Fimage005.gif?alt=media&amp;token=0adc2982-a0df-4f7e-bb31-881512d9a5d1" alt="" width="158"><figcaption></figcaption></figure>

* Residual Stresses in the hoop direction. (results can be different if different process settings are used)

<figure><img src="https://3062023715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0UQEr9tolIKQwZXdPc9a%2Fuploads%2FdbyE4skbYdAHJmEmeWO8%2Fimage006.gif?alt=media&amp;token=fa993838-fab6-43a7-b8eb-94d772fe5015" alt="" width="156"><figcaption></figcaption></figure>

## **Step 3: Options of Contour Plot**

* ***Options*** / ***Common***.  ***Contour Plot Options*** window appears.

<figure><img src="https://3062023715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0UQEr9tolIKQwZXdPc9a%2Fuploads%2FnkghG5n7k1u7DbeditXP%2Fimage001.gif?alt=media&amp;token=ddd20d3f-d485-4cb3-b759-0023cea68144" alt=""><figcaption></figcaption></figure>

* Under ***Basic*** tab, Check ***Free edges*** under the ***Visible Edges*** option. ***Click OK*** or ***Apply*** to create contour without meshing.

<figure><img src="https://3062023715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0UQEr9tolIKQwZXdPc9a%2Fuploads%2FGsKua2sX43HSM8BwRLsg%2Fimage002.gif?alt=media&amp;token=ca193594-26bc-4fa3-9fe3-c663e525f873" alt="" width="178"><figcaption></figcaption></figure>

* Under ***Basic*** tab, change the ***Deformation Scale factor***, set it as ***Uniform***, ***10,*** Click ***Apply***
* ***Options / Contour***, the ***Contour Plot Options*** window pops up. The minimum and maximum values of the legend can be set here.

<figure><img src="https://3062023715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0UQEr9tolIKQwZXdPc9a%2Fuploads%2FKKkIJLgJBejKolKwqD8M%2Fimage003.gif?alt=media&amp;token=079f2629-3251-4dd6-bcf6-75471b3f980e" alt="" width="368"><figcaption></figcaption></figure>

## Create contour plot of different phases <a href="#create-contour-plot-of-different-phases" id="create-contour-plot-of-different-phases"></a>

## In *Field Output* window, the following options are most commonly used. <a href="#in-field-output-window-the-following-options-are-most-commonly-used" id="in-field-output-window-the-following-options-are-most-commonly-used"></a>

* SDV1:  carbon content
* SDV2:  hardness in Rockwell C
* SDV21: volume fraction of Austenite
* SDV34: volume fraction of Ferrite
* SDV47: volume fraction of Pearlite
* SVD60: volume fraction of Upper Bainite
* SDV73: volume fraction of Lower Bainite
* SDV86: volume fraction of Martensite
* SDV99: volume fraction of Tempered Martensite

## **Step 4: Create Animation Video Clips**

* ***Animation*** / ***Time history***, animation will be shown on the screen
* ***Animation*** / ***Save as*** to save the animation file (select Microsoft Video 1 option for better quality video)

<figure><img src="https://3062023715-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0UQEr9tolIKQwZXdPc9a%2Fuploads%2Fa8R7tPGOrJT5JsGUGbYm%2Fimage001.jpg?alt=media&amp;token=898da2ec-d7ae-482d-9353-74a05d5db7c6" alt="" width="373"><figcaption></figcaption></figure>
